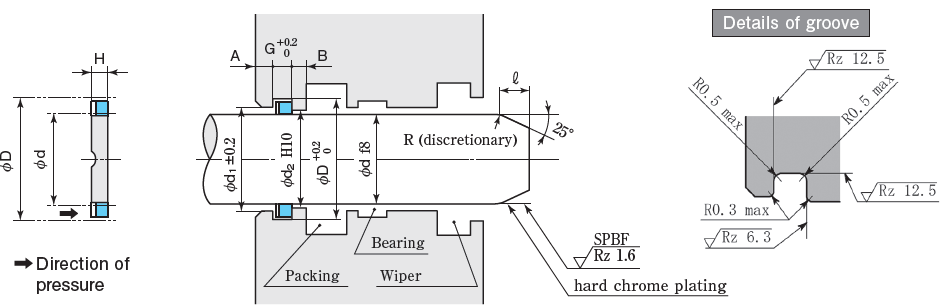

Profiles (Left section)
Service range
| Standard Material | |||
| Material codes | Pressure MPa {kgf/㎠} | Max. speed (m/s) |
Temperature
range (℃) |
| PTFE(PT111) | 21 {210} | 1 | ー55～80 |
Characteristics
PG-Rings absorb impalsive pressure rise and enhance the sealing property and durability of packings.
Remarks
- ●PG-Rings should be installed in the direction specified on the above schematic.
- ●Dimension
refers to the groove dimension of packings in the seal systems. - ※JIS standard sequence of surface roughness symbols refer to HERE.
Dimension table
| PG-Rings & Groove dimensions（Unit：mm) | Part No. | |||||||
|---|---|---|---|---|---|---|---|---|
| d | D | H | G | d1 | d2 | A | B | Standard material |
| 18 | 23 | 2.5 | 3 | 19 | 18.5 | 3 | 3 | PGRI-18 |
| 20 | 25 | 2.5 | 3 | 21 | 20.5 | 3 | 3 | PGRI-20 |
| 22.4 | 27.4 | 2.5 | 3 | 23.4 | 22.9 | 3 | 3 | PGRI-22.4 |
| 25 | 30 | 2.5 | 3 | 26 | 25.5 | 3 | 3 | PGRI-25 |
| 28 | 33 | 2.5 | 3 | 29 | 28.5 | 3 | 3 | PGRI-28 |
| 30 | 36 | 3 | 3.5 | 31 | 30.6 | 3 | 3.5 | PGRI-30 |
| 31.5 | 37.5 | 3 | 3.5 | 32.5 | 32.1 | 3 | 3.5 | PGRI-31.5 |
| 35 | 41 | 3 | 3.5 | 36 | 35.6 | 3 | 3.5 | PGRI-35 |
| 35.5 | 41.5 | 3 | 3.5 | 36.5 | 36.1 | 3 | 3.5 | PGRI-35.5 |
| 40 | 46 | 3 | 3.5 | 41 | 40.6 | 3 | 3.5 | PGRI-40 |
| 45 | 51 | 3 | 3.5 | 46 | 45.6 | 3 | 3.5 | PGRI-45 |
| 50 | 57 | 3.4 | 4 | 51 | 50.6 | 4 | 4 | PGRI-50 |
| 53 | 60 | 3.4 | 4 | 54 | 53.6 | 4 | 4 | PGRI-53 |
| 55 | 62 | 3.4 | 4 | 56 | 55.6 | 4 | 4 | PGRI-55 |
| 56 | 63 | 3.4 | 4 | 57 | 56.6 | 4 | 4 | PGRI-56 |
| 60 | 67 | 3.4 | 4 | 61 | 60.6 | 4 | 4 | PGRI-60 |
| 63 | 70 | 3.4 | 4 | 64 | 63.6 | 4 | 4 | PGRI-63 |
| 67 | 74 | 3.4 | 4 | 68 | 67.6 | 4 | 4 | PGRI-67 |
| 70 | 78 | 3.8 | 4.5 | 71 | 70.6 | 4 | 4 | PGRI-70 |
| 71 | 79 | 3.8 | 4.5 | 72 | 71.6 | 4 | 4 | PGRI-71 |
| 75 | 83 | 3.8 | 4.5 | 76 | 75.6 | 4 | 4 | PGRI-75 |
| 80 | 88 | 3.8 | 4.5 | 81 | 80.6 | 4 | 4 | PGRI-80 |
| 85 | 93 | 3.8 | 4.5 | 86 | 85.6 | 4 | 4 | PGRI-85 |
| 90 | 98 | 3.8 | 4.5 | 91 | 90.6 | 4 | 4 | PGRI-90 |
| 95 | 103 | 3.8 | 4.5 | 96 | 95.6 | 4 | 4 | PGRI-95 |
| 100 | 110 | 4.5 | 5.5 | 101.5 | 100.6 | 5 | 6 | PGRI-100 |
| 106 | 116 | 4.5 | 5.5 | 107.5 | 106.6 | 5 | 6 | PGRI-106 |
| 110 | 120 | 4.5 | 5.5 | 111.5 | 110.6 | 5 | 6 | PGRI-110 |
| 112 | 122 | 4.5 | 5.5 | 113.5 | 112.6 | 5 | 6 | PGRI-112 |
| 115 | 125 | 4.5 | 5.5 | 117 | 115.6 | 5 | 6 | PGRI-115 |
| 120 | 130 | 4.5 | 5.5 | 122 | 120.6 | 5 | 6 | PGRI-120 |
| 125 | 135 | 4.5 | 5.5 | 127 | 125.6 | 5 | 6 | PGRI-125 |
| 140 | 150 | 4.5 | 5.5 | 142 | 140.7 | 5 | 6 | PGRI-140 |
| 150 | 162 | 5.5 | 6.5 | 152 | 150.7 | 5 | 6 | PGRI-150 |
| 160 | 172 | 5.5 | 6.5 | 162 | 160.7 | 5 | 6 | PGRI-160 |
| 180 | 192 | 5.5 | 6.5 | 182 | 180.7 | 5 | 6 | PGRI-180 |
- ★Orders and inquiries are acceptable by part numbers. Part numbers marked ※ have been changed each part numbers. Please check HERE for the previous part number.
- ★Part numbers in blue letters are the products in stock.
- ★PG-Rings with the part numbers in light Italic require the confirmation of their availability prior to ordering. These items are subject to the abolishment without notice. Reclamation of an abolished product requires producing the new tooling at your expense.
- ★PG-rings are adequately packaged for the optimum storage. Refer to Cautions for the handling and storage.
- ★Performance and material tests on packing and seals are also available. Please contact us for more information.
