Profiles (Left section)
Service range
| Standard material | |||
| Material codes | Pressure MPa {kgf/㎠} | Max. speed (m/s) |
Temperature
range (℃) |
| NBR(RN729) FKM[RF905] |
1 ｛10｝ | 1 | ー20～80 [ー5～150] |
Material codes・The range with [ ] refers FKM materials
Characteristics
PNY-Packings are high wear resistant rod packings providing stable sealing performance under conditions: lubricated, non-lubricated and dry air systems.
Remarks
- ●The material of PNY packing has changed from NBR (RN713) to NBR (RN729), but other materials are also available. Please contact us individually.

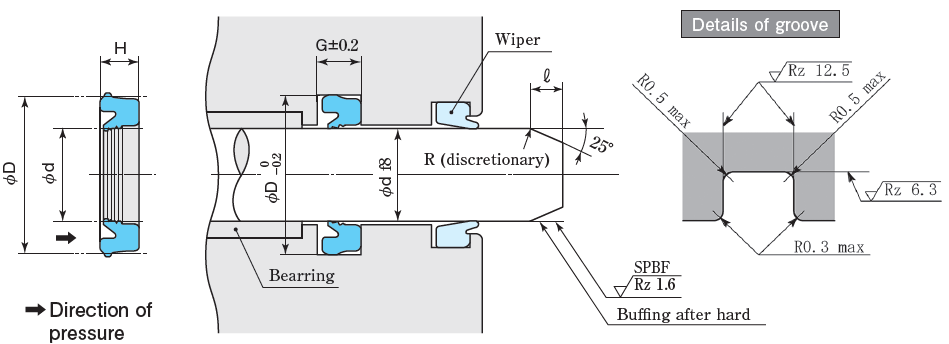

- ●Packings should be installed in the direction specified on the above schematic.
- ●Consider adopting split grooves if one-piece groove is technically adverse.
- ※JIS standard sequence of surface roughness symbols refer to HERE.
Dimension table
| Packings & Groove dimensions （Unit：mm） | Part No. | |||||
|---|---|---|---|---|---|---|
| d | D | H | G |  |
Standard （RN 729） |
High temperature-resistant （RF 905） |
| 16 | 24 | 5.2 | 5.7 | 1.5 | PNY-16K | |
| 18 | 26 | 5.2 | 5.7 | 1.5 | PNY-18K | |
| 20 | 28 | 5.2 | 5.7 | 1.5 | PNY-20K | |
| 22 | 30 | 5.2 | 5.7 | 1.5 | PNY-22K | |
| 22.4 | 30 | 5.2 | 5.7 | 1.5 | PNY-22.4K | |
| 25 | 33 | 5.2 | 5.7 | 1.5 | PNY-25K | PNY-25F |
| 28 | 36 | 5.2 | 5.7 | 1.5 | PNY-28K | |
| 30 | 40 | 6.5 | 7 | 3 | PNY-30K | |
| 32 | 42 | 6.5 | 7 | 3 | PNY-32K | PNY-32F |
| 35 | 45 | 6.5 | 7 | 3 | PNY-35K | |
| 35.5 | 45.5 | 6.5 | 7 | 3 | PNY-35.5K | |
| 36 | 46 | 6.5 | 7 | 3 | PNY-36K | |
| 40 | 50 | 6.5 | 7 | 3 | PNY-40K | |
| 45 | 55 | 6.5 | 7 | 3 | PNY-45K | |
| 50 | 60 | 6.5 | 7 | 3 | PNY-50K | |
| 55 | 65 | 6.5 | 7 | 3 | PNY-55K | |
| 60 | 70 | 6.5 | 7 | 3 | PNY-60K | |
| 63 | 73 | 6.5 | 7 | 3 | PNY-63K | |
| 70 | 80 | 6.5 | 7 | 3 | PNY-70K | |
- ★Orders and inquiries are acceptable by part numbers. Part numbers marked ※ have been changed each part numbers. Please check HERE for the previous part number.
- ★Part numbers in blue letters are the products in stock.
- ★Packings with the part numbers in light Italic require the confirmation of their availability prior to ordering. These items are subject to the abolishment without notice. Reclamation of an abolished product requires producing the new tooling at your expense.
- ★Packings are adequately packaged for the optimum storage. Refer to Cautions for the handling and storage.
- ★Performance and material tests on packing and seals are also available. Please contact us for more information.
| Profiles (Left section) | Standard Material | Part Name | Application | Field of application |
|---|---|---|---|---|
 |
NBR(RN729) | PGY-Packings | （Piston packings） | |
 |
NBR(RN906) | SDR-Wipers | （Rod packings） | |
 |
NBR(RN912) | SFR-Wipers | （Rod packings） |
