Profiles (Left section)
Service range
| Standard Material | ||||
| Material codes | Pressure MPa {kgf/㎠} | Max. speed (m/s) |
Temperature range (℃) |
|
| NBR(RN919) | GNY-Packings〈Clearance of extrusion H9/f8〉 | 17.5 ｛175｝ | 1 | ー30～100 |
| w/Back-up rings | 25 ｛250｝ | 0.5 | ||
| w/Standard & high pressure back-up rings | 35 ｛350｝ | |||
Characteristics
GNY-rod packings are rod packings are designed to obtain optimum durability of high wear resistant material by the RN919.
With the larger cross-sectional area than that of SKY-Packings, GNY-rod packings provide extra long time operation.
GNY-rod packings also provide stable sealing performance under considerably eccentric rod action.
With the larger cross-sectional area than that of SKY-Packings, GNY-rod packings provide extra long time operation.
GNY-rod packings also provide stable sealing performance under considerably eccentric rod action.
Remarks

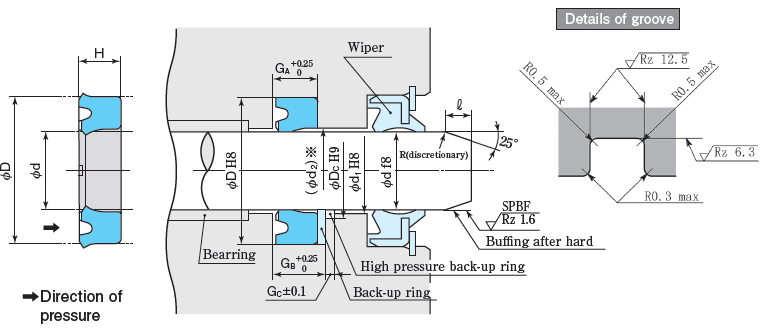

- ●Packings should be installed in the direction specified on the above schematic.
- ●Consider adopting split grooves if one-piece groove is technically adverse.
- ●When a high pressure back-up ring is not used, φDc and Gc are not necessary.
- ※For applications without back-up rings, refer to the limiting curve of extrusion of seals to obtain the dimension (φd2).
- ※JIS standard sequence of surface roughness symbols refer to HERE.
Dimension table
| Packings & Groove dimensions (Unit：mm） | Part No. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | H | GA | GB | GC | DC | d1(Reference) |  |
Standard material （RN919） |
Standard back-up ring （PT114） |
High pressure back-up ring （PA101） |
| 18 | 26 | 5 | 6 | 7.5 | 2 | 21 | 18.5 | 3.5 | GNY- 18 | TC-GNY-18 | PE-GNY-18 |
| 20 | 28 | 5 | 6 | 7.5 | 2 | 23 | 20.5 | 3.5 | GNY- 20 | TC-GNY-20 | PE-GNY-20 |
| 22 | 30 | 5 | 6 | 7.5 | 2 | 25 | 22.5 | 3.5 | GNY- 22 | TC-GNY-22 | PE-GNY-22 |
| 25 | 33 | 5 | 6 | 7.5 | 2 | 28 | 25.5 | 3.5 | GNY- 25 | TC-GNY-25 | PE-GNY-25 |
| 28 | 36 | 5 | 6 | 7.5 | 2 | 31 | 28.5 | 3.5 | GNY- 28 | TC-GNY-28 | PE-GNY-28 |
| 30 | 40 | 6 | 7 | 9 | 2.5 | 34 | 30.5 | 4 | GNY- 30 | TC-GNY-30 | PE-GNY-30 |
| 32 | 42 | 6 | 7 | 9 | 2.5 | 36 | 32.5 | 4 | GNY- 32 | TC-GNY-32 | PE-GNY-32 |
| 35 | 45 | 6 | 7 | 9 | 2.5 | 39 | 35.5 | 4 | GNY- 35 | TC-GNY-35 | PE-GNY-35 |
| 36 | 46 | 6 | 7 | 9 | 2.5 | 40 | 36.5 | 4 | GNY- 36 | TC-GNY-36 | PE-GNY-36 |
| 40 | 50 | 6 | 7 | 9 | 2.5 | 44 | 40.5 | 4 | GNY- 40 | TC-GNY-40 | PE-GNY-40 |
| 45 | 55 | 6 | 7 | 9 | 2.5 | 49 | 45.5 | 4 | GNY- 45 | TC-GNY-45 | PE-GNY-45 |
| 50 | 63 | 8 | 9 | 11.5 | 3 | 56 | 50.5 | 5 | GNY- 50 | TC-GNY-50 | PE-GNY-50 |
| 55 | 68 | 8 | 9 | 11.5 | 3 | 61 | 55.6 | 5 | GNY- 55 | TC-GNY-55 | PE-GNY-55 |
| 56 | 69 | 8 | 9 | 11.5 | 3 | 62 | 56.6 | 5 | GNY- 56 | TC-GNY-56 | PE-GNY-56 |
| 60 | 73 | 8 | 9 | 11.5 | 3 | 66 | 60.6 | 5 | GNY- 60 | TC-GNY-60 | PE-GNY-60 |
| 63 | 76 | 8 | 9 | 11.5 | 3 | 69 | 63.6 | 5 | GNY- 63 | TC-GNY-63 | PE-GNY-63 |
| 65 | 78 | 8 | 9 | 11.5 | 3 | 71 | 65.6 | 5 | GNY- 65 | TC-GNY-65 | PE-GNY-65 |
| 70 | 85 | 9 | 10 | 12.5 | 3 | 76 | 70.6 | 5 | GNY- 70 | TC-GNY-70 | PE-GNY-70 |
| 75 | 90 | 9 | 10 | 12.5 | 3 | 81 | 75.6 | 5 | GNY- 75 | TC-GNY-75 | PE-GNY-75 |
| 80 | 95 | 9 | 10 | 12.5 | 3 | 86 | 80.6 | 5 | GNY- 80 | TC-GNY-80 | PE-GNY-80 |
| 90 | 105 | 9 | 10 | 12.5 | 3 | 96 | 90.6 | 5 | GNY- 90 | TC-GNY-90 | PE-GNY-90 |
| 100 | 120 | 12 | 13 | 16 | 3.5 | 107 | 100.6 | 6 | GNY- 100 | TC-GNY-100 | PE-GNY-100 |
| 110 | 130 | 12 | 13 | 16 | 3.5 | 117 | 110.6 | 6 | GNY- 110 | TC-GNY-110 | PE-GNY-110 |
| 125 | 145 | 12 | 13 | 16 | 3.5 | 132 | 125.7 | 6 | GNY-125 | TC-GNY-125 | PE-GNY-125 |
| 140 | 160 | 12 | 13 | 16 | 3.5 | 147 | 140.7 | 6 | GNY-140 | TC-GNY-140 | PE-GNY-140 |
| 160 | 180 | 12 | 13 | 16 | 3.5 | 167 | 160.7 | 6 | GNY-160 | TC-GNY-160 | PE-GNY-160 |
| 180 | 200 | 12 | 13 | 16 | 3.5 | 187 | 180.7 | 6 | GNY-180 | TC-GNY-180 | PE-GNY-180 |
- ★Orders and inquiries are acceptable by part numbers. Part numbers marked ※ have been changed each part numbers. Please check HERE for the previous part number.
- ★Part numbers in blue letters are the products in stock.
- ★Packings with the part numbers in light Italic require the confirmation of their availability prior to ordering. These items are subject to the abolishment without notice. Reclamation of an abolished product requires producing the new tooling at your expense.
- ★Packings are adequately packaged for the optimum storage. Refer to Cautions for the handling and
- ★Performance and material tests on packing and seals are also available. Please contact us for more information.
